Author Topic: DIY Sliding Crosscut Table  (Read 433 times)

0 Members and 1 Guest are viewing this topic.

Offline 4nthony

  • Posts: 545
    • Slack for Recon Tools
DIY Sliding Crosscut Table
« on: March 05, 2023, 08:47 PM »
This is an impressive build.



I've never used a sliding table and don't have the space to add one, but they ones I've seen from SawStop and Harvey look pretty useful. As do the dedicated sliders from Hammer and Felder.
Logged
Recon Tool Notifications

Anthony

"The best way to get a correct answer on the internet is to post an obviously wrong answer and wait for someone to correct you." - Kevin Kelly
Festool USA does not pre-approve the contents of this website nor endorse the application or use of any Festool product in any way other than in the manner described in the Festool Instruction Manual. To reduce the risk of serious injury and/or damage to your Festool product, always read, understand and follow all warnings and instructions in your Festool product's Instruction Manual. Although Festool strives for accuracy in the website material, the website may contain inaccuracies. Festool makes no representations about the accuracy, reliability, completeness or timeliness of the material on this website or about the results to be obtained from using the website. Festool and its affiliates cannot be responsible for improper postings or your reliance on the website's material. Your use of any material contained on this website is entirely at your own risk. The content contained on this site is provided for informational purposes only and does not constitute professional advice.

Offline derekcohen

  • Posts: 687
    • In The Woodshop
Re: DIY Sliding Crosscut Table
« Reply #1 on: March 05, 2023, 09:09 PM »
Anthony, you would have the space for a slider if you did not go down the route of this YouTube presenter. I suspect that he is after clickbait rather than offering a useful design.

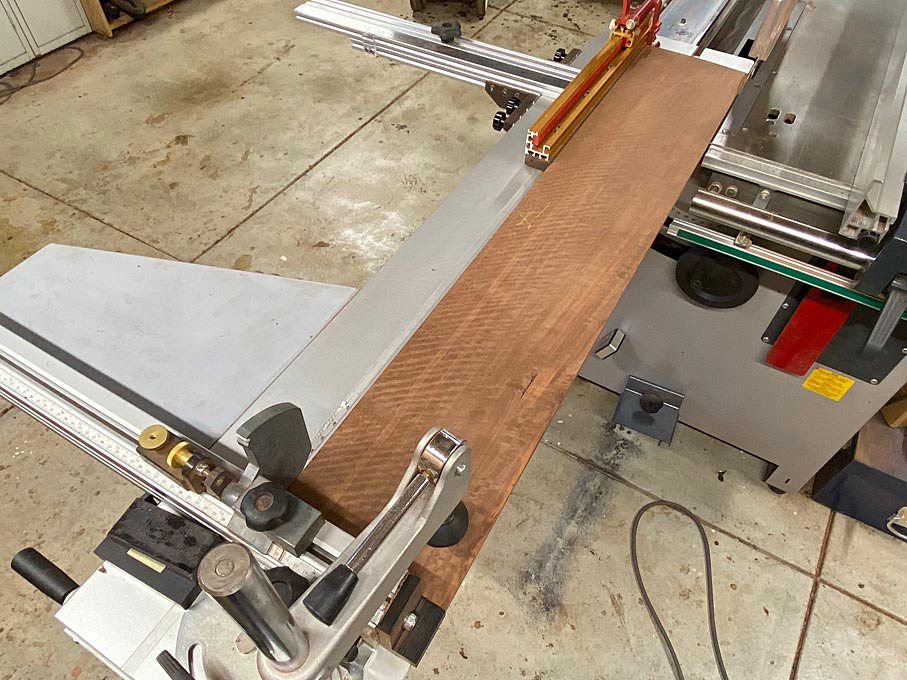

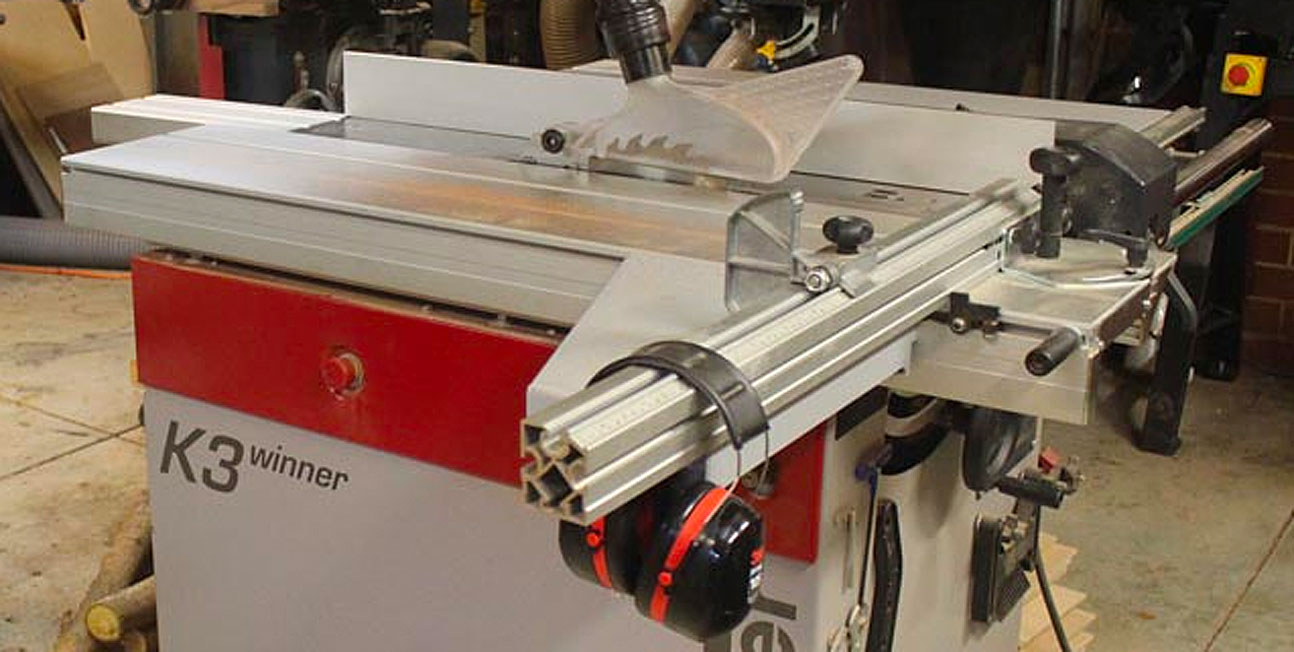

First of all, I do not work with sheetgoods and so chose a slider with a shorter wagon (the sliding part). Mine is a Hammer K3 with a 1250mm wagon.



The wagon can be fixed (with a catch) and then the slider becomes a traditional tablesaw. That would be a waste - my wagon is long enough to rip on (using a shopmade parallel guide) …



To the point - a slider has the wagon attached about 1” from the blade. This presenter has his wagon about 24” (or more) from the blade. Not only is this unnecessary, but the set up loses precision. He needed to remove the panel alongside his blade. I suspect that he did not understand this. The SawStop and Harvey accessory tables attach about 12” from the blade and are purely for crosscutting, and they, too, are best utilised as close to the blade as possible to do.

My K3 has a smaller footprint than the contractor saw it replaced several years ago.

Regards from Perth

Derek
« Last Edit: March 05, 2023, 09:12 PM by derekcohen »
Logged
Visit www.inthewoodshop.com for tutorials on joinery, hand tools, and my trials and tribulations with furniture builds.

Offline 4nthony

  • Posts: 545
    • Slack for Recon Tools
Re: DIY Sliding Crosscut Table
« Reply #2 on: March 07, 2023, 01:29 PM »
Hi Derek,

I have a SawStop PCS that I'm mostly happy with -- I had some phantom brake triggers that seem to have been resolved -- but if I were to ever sell it, a K3 like yours would most likely be the replacement. My workspace consists of 1/2 of a small 2 car garage and you're right, the K3 (48x48) would be a perfect fit in my space.

Adding an accessory slider to my SawStop would result in a much tighter fit making it difficult to pull the car in.

Cheers,
Anthony
Logged
Recon Tool Notifications

Anthony

"The best way to get a correct answer on the internet is to post an obviously wrong answer and wait for someone to correct you." - Kevin Kelly
